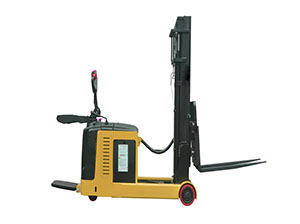

M20 Electric Reach Forklift
Click to enlarge
| Identification | Manufacturer | CHN | |
| Model | M20 | ||
| Drive | Electric | ||
| Operator type | Pedestrian | ||
| Load capacity | Q (t) | 2 | |
| Load center | c (mm) | 500 | |
| Front overhang | x (mm) | 324 | |
| Wheelbase | y (mm) | 1550 | |
| Weight | Service weight (with battery) | kg | 2750 |
| Dimensions | Tilt of mast/fork, forward/backward | a/b (°) | 3/5 |
| , mast lowered | h1 (mm) | 1990 | |
| Free lift | h2 (mm) | 0 | |
| Lift | h3 (mm) | 3000 | |
| , mast extended | h4 (mm) | 3860 | |
| of control handle at operation position, min./max. | h14 (mm) | 1075/1502 | |
| , fork lowered | h13 (mm) | 40 | |
| Overall length (pedal retracted) | l1 (mm) | 2540 | |
| Length of truck (pedal retracted) | l2 (mm) | 1470 | |
| Overall | b1/ b2 (mm) | 1106 | |
| Fork dimensions | s/e/l (mm) | 40/120/1070 | |
| over forks | b5 (mm) | 240-715 | |
| Distance between support arm and load surface | b4 (mm) | 746 | |
| Reach distance | l4 (mm) | 500 | |
| Min. ground clearance | m2 (mm) | 63 | |
| Aisle : 1000 × 1200 pellets (1200 lengthways) | Ast (mm) | 2900 | |
| Aisle : 800 × 1200 pellets (1200 lengthways) | Ast (mm) | 2960 | |
| Turning radius | Wa (mm) | 1800 | |
| Others | Type of drive control | CURTIS AC | |
| Noise level | (dB(A)) | < 75 |
