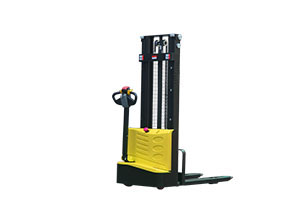

TW15 Electric Stacker
Click to enlarge
| Identification | Manufacturer | CHN | ||
| Model | TW15 | |||
| Drive | Electric | |||
| Operator type | Pedestrian | |||
| Load capacity | Q (t) | 1.5 | ||
| Load center | c (mm) | 600 | ||
| Front overhang | x (mm) | 720 | ||
| Wheelbase | y (mm) | 1167 | ||
| Weight | Service weight (with battery) | kg | 495 | |
| Dimensions | , mast lowered | h1 (mm) | 1995 | |
| Free lift | h2 (mm) | 0 | ||
| Lift | h3 (mm) | 3000 | ||
| , mast extended | h4 (mm) | 3424 | ||
| of control handle at operation position, min./max. | h14 (mm) | 700/1225 | ||
| , fork lowered | h13 (mm) | 86 | ||
| Overall length | l1 (mm) | 1740 | ||
| Length of stacker | l2 (mm) | 590 | ||
| Overall | b1/ b2 (mm) | 795 | ||
| Fork dimensions | s/e/l (mm) | 60/160/1150 | ||
| over forks | b5 (mm) | 570/695 | ||
| Ground clearance of central wheelbase | m2 (mm) | 26 | ||
| Aisle : 1000 × 1200 pellets (1200 lengthways) | Ast (mm) | 2074 | ||
| Aisle : 800 × 1200 pellets (1200 lengthways) | Ast (mm) | 2040 | ||
| Turning radius | Wa (mm) | 1342 | ||
| Others | Type of drive control | DC speed control | ||
| Noise level | (dB(A)) | 69 | ||
| Steering mode | Mechanical | |||
